How to use Liferay 7.2 headless APIs for custom objects

Introducing your new local pizza place

Liferay 7.2 headless APIs open up a wide range of possibilities, even when it comes to custom objects. Imagine there has just opened a new restaurant in town and they are serving the most delicious pizzas. Unfortunately seeing as they have just opened, they haven’t had the time or resources to invest in a brand new fancy website. For the time being the owner’s son, who is still in college, has put together a small Angular application in order to put their menu online.

pizza shop

This application however is not linked to a repository or any back-end application, which means they can’t add or edit anything on their menu on the fly. This is quite troublesome: due to the current pandemic they had to switch to a delivery system and want to be able to update their website regularly.

Having heard this little scenario, you just remembered you have a Liferay 7.2 portal running somewhere and are wondering if, using the new headless APIs, you could step in and help them.

Having reached out to the restaurant, you learned that their requirements were pretty basic:

  • They need an overview of their employees who are able to make deliveries and need to know when they’re taking a day off.
  • They need to be able to add or edit items on their menu.

Enter Liferay 7.2 headless APIs

We already wrote a blog post introducing this topic, but in a nutshell you could say these headless APIs offer a lot of Liferay’s built-in features and content up for grabs and ready to use in a custom front-end application, smart device, IoT devices, …

All of Liferay’s endpoints that are available come with a swagger documentation, which you can find here. As you can see there are a lot of different domains that Liferay has made available to us. For the purpose of this blog however I will take a quick look at the Headless Admin User and Headless Delivery.

Mapping the requirements

The goal of this exercise is to meet our customer’s requirements with as little effort as possible. Naturally, that means we’ll take full advantage of the available endpoints and Liferay’s built-in features.

The employee overview

This overview will only contain some basic information, such as:

  • Full name
  • An email address
  • Their day off
  • Whether or not they are able to deliver pizzas

If you take a closer look at the Headless Admin User, you’ll notice an endpoint which fetches all user-accounts from a certain site:

/o/headless-admin-user/v1.0/sites/{siteId}/user-accounts

If we treat the employees as users of a site, we can expose their information to the Angular application. In order to meet the full requirement, we will have to enrich our Users with 2 custom fields:

  • Day off – which could be a dropdown list
  • Pizza deliverer – which will probably be a true/false flag.

Exposing the headless endpoints

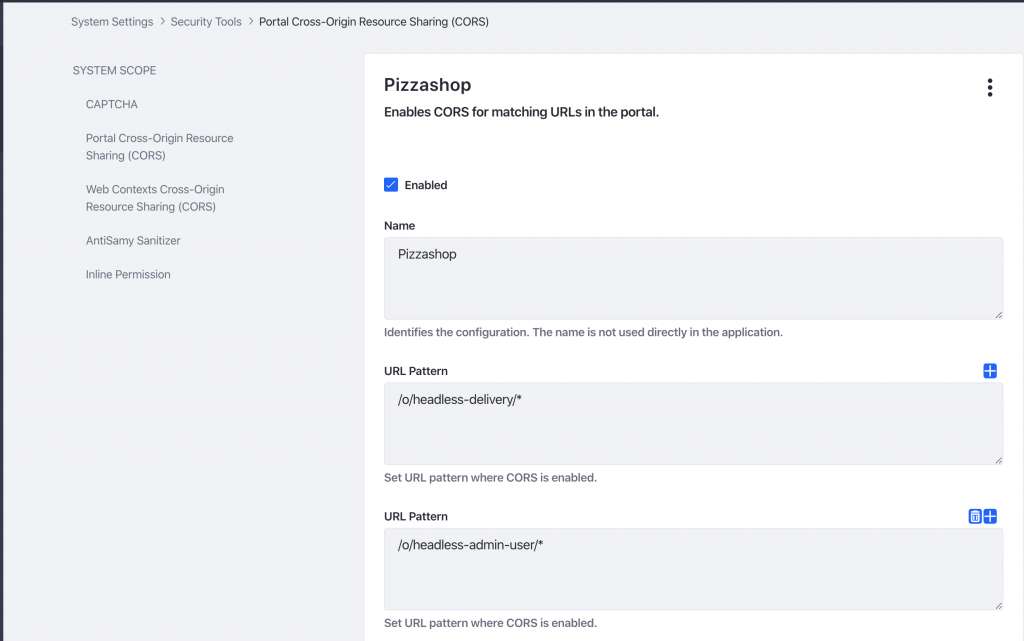

Now that we have come up with a way to meet one of the restaurant’s requirements, we have to make sure our Angular application can actually address it without being blocked. We’ll have to do a little bit of configuration in our portal:

pizzashop app built in Liferay

As you can see in this example, I have exposed all endpoints regarding headless-delivery and headless-admin-user. For obvious reasons, you might want to limit this to the endpoints you wish to expose.

Additional information regarding making authenticated requests can be found on Liferay’s official site.

Extracting relevant information

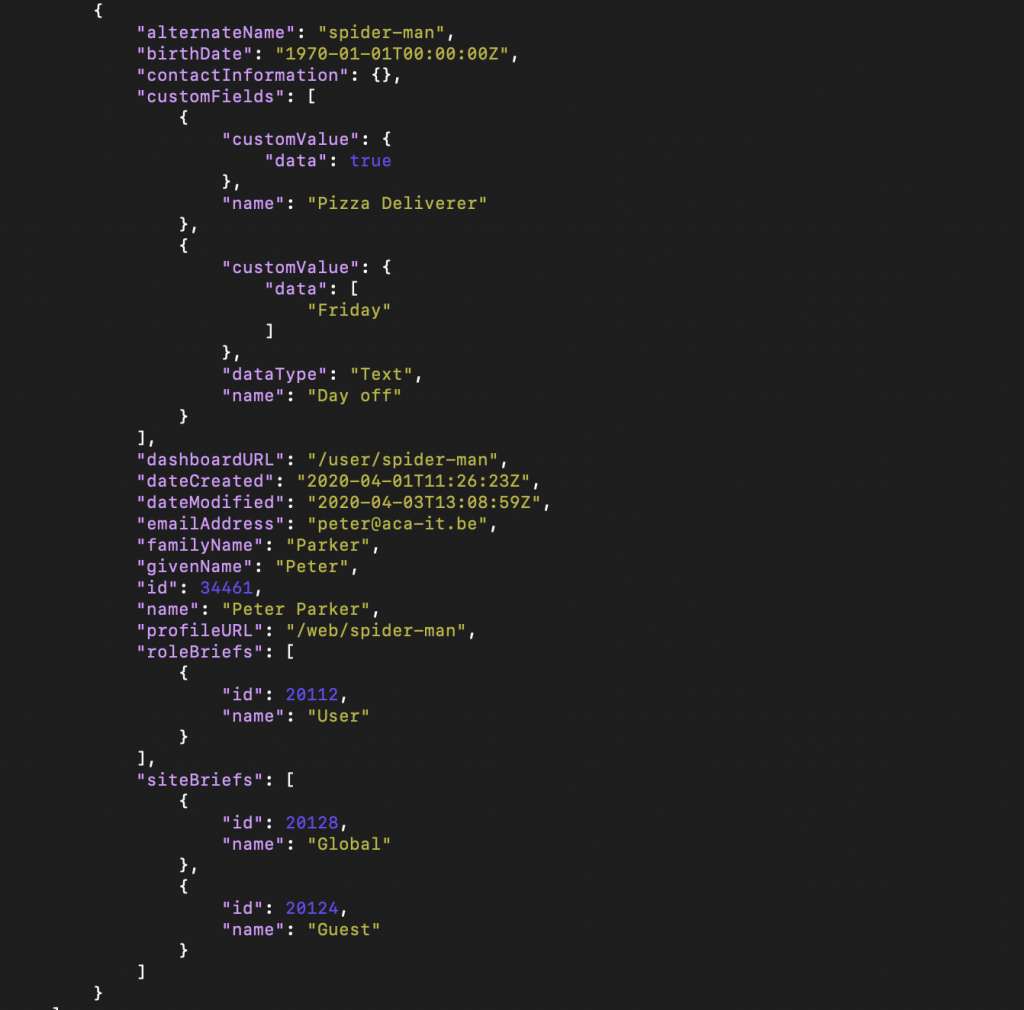

If we fetch all users from our desired site, we get the following response for each user:

pizzashop app liferay code

As you can see this response contains all the information we need, but also a lot of redundant information. We can limit our response to only the fields we require by adding them to our request:

/o/headless-admin-user/v1.0/sites/{siteId}/user-accounts?fields=alternateName,customFields,emailAddress,name

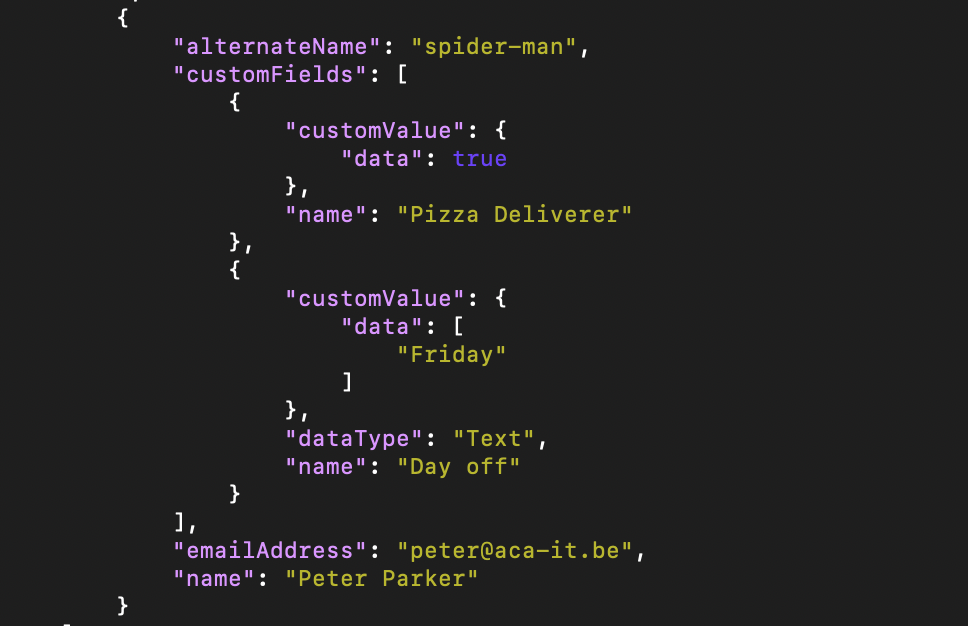

That results in the following response for each user:

pizzashop app liferay code

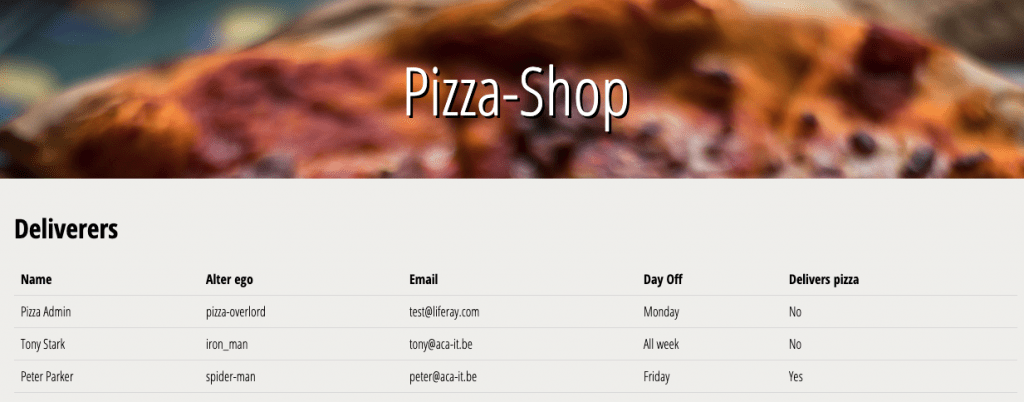

Using this response the Angular application can generate the required overview:

liferay response in angular

One drawback of this approach is that you’re restricted to Liferay’s domain model. You’ll have to parse the JSON-response manually or match your model to Liferay’s, which in case of these custom fields, could be a hassle.

Creating your custom objects?

In order to create the employee overview, we took advantage of the Liferay Users, which in this case we could map perfectly on our customer’s demand. Although Liferay offers a wide variety of endpoints that could be used to meet your customer’s demands, this won’t always be the case.

Take the pizzas on our menu for instance, they would have to contain the following information:

  • The name of the pizza
  • A short description
  • Level of spiciness
  • Additional toppings
  • Whether or not the pizza can be delivered

There is no way to map this information on an existing Liferay object. So, we will have to create an object like this ourselves. Preferably, we want to expose these objects through the headless API with as little effort as possible. Seeing as Liferay has not yet blessed us with the ability to create custom objects accompanied with their APIs, we’ll have to think outside of the box here.

Those good old web content articles

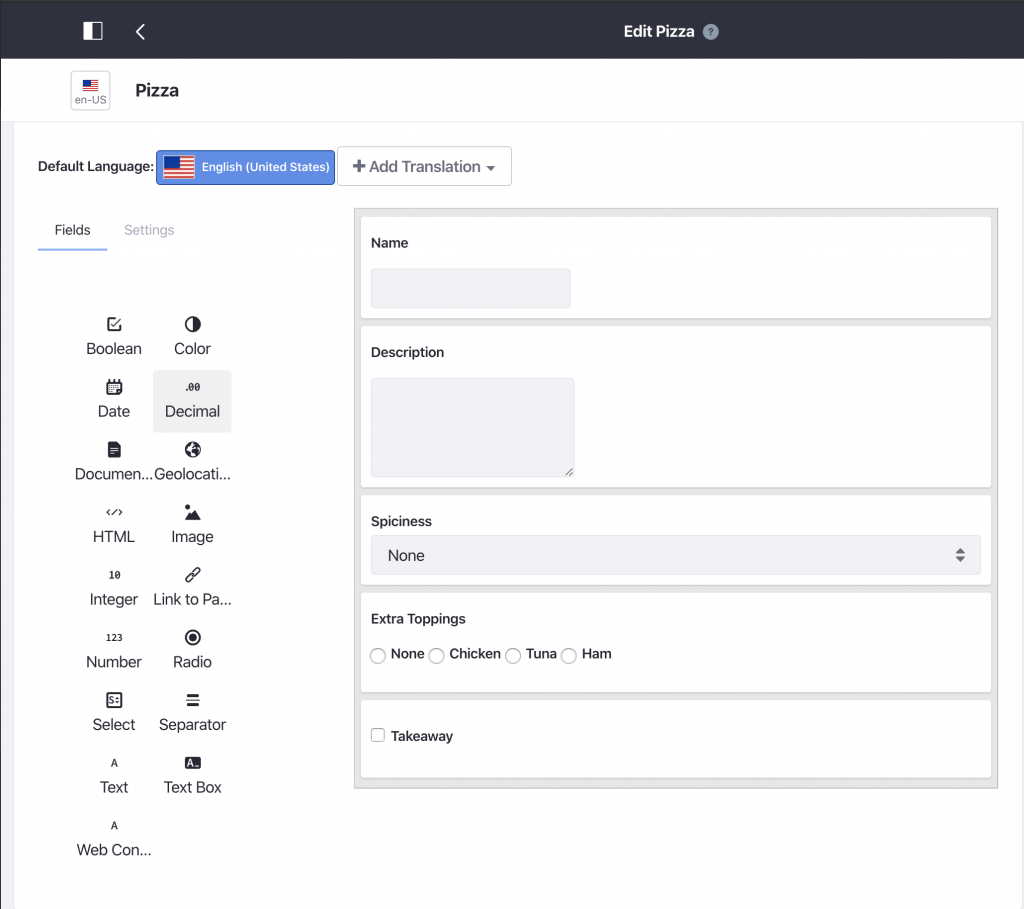

If you are familiar with Liferay’s web content articles, you’ll know a web content article uses a ‘Structure’. A structure is something we can create ourselves and thus define its fields. For example we could create the following pizza structure:

pizzashop app structure in Liferay

With these structures we are able to create our different pizzas in the form of web content articles. Seeing as a web content article is a built-in feature of Liferay, there is bound to be a endpoint exposing them, namely:

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents

However, and you probably already guessed it, this also gives us a lot of redundant information. So we will have to add the relevant fields to the request:

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?fields=contentFields.name,contentFields.value.data

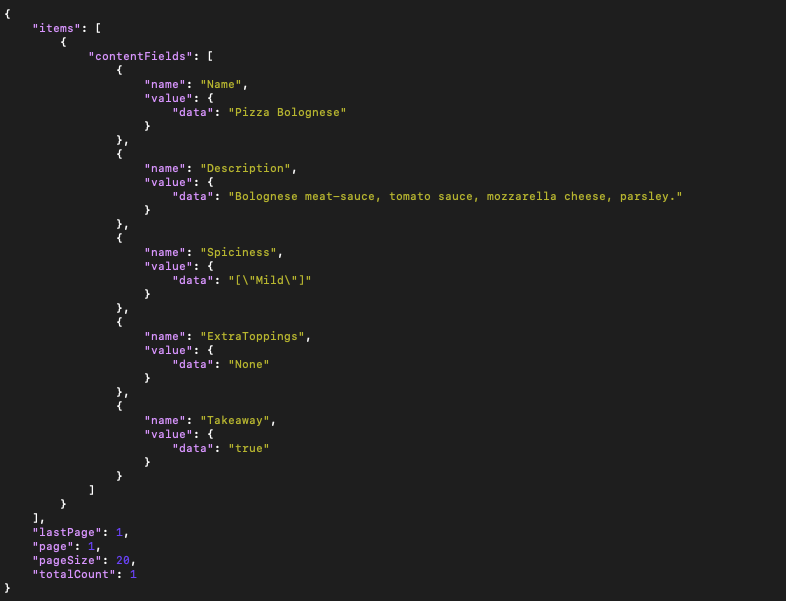

That results in the following response:

pizzashop app liferay code

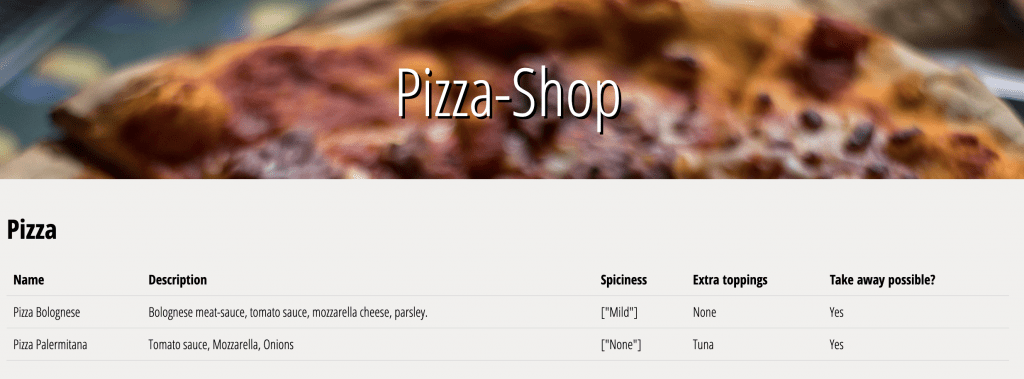

Using this response the Angular application generates the required menu:

pizzashop app response in Angular application

Is there no way to create a custom response?

As you might have noticed, in the example above we are still experiencing the drawback of having to deal with the manual parsing. Ideally we would be able to define the response as well. And it so happens, we can… albeit with a workaround. Web content articles not only use structures, but also templates. And as with structures, we can define these templates as well.

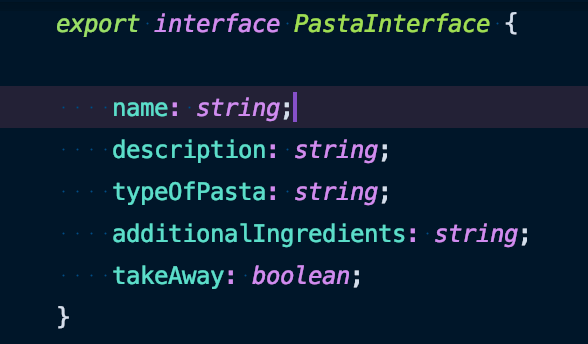

Our local pizza place decided to introduce pastas to the menu. Furthermore this time we don’t want to be dealing with the manual parsing anymore. We would like to take advantage of Angular’s interfaces to do this automagically. Imagine the following interface in your Angular application:

pizzashop custom response liferay code

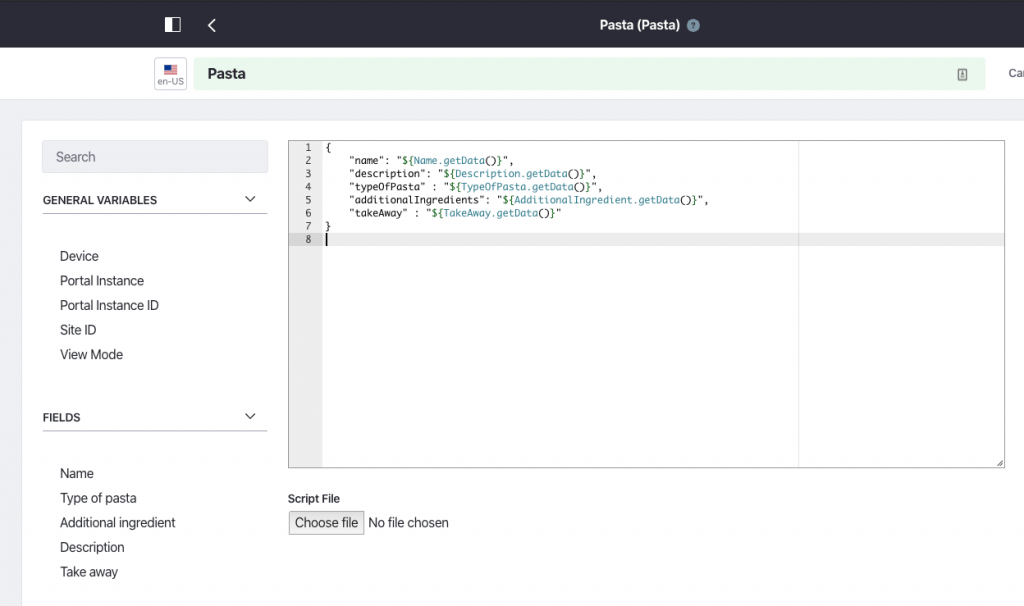

We could define a template ‘Pasta’ In Liferay that matches this interface, for example:

pizzashop app pasta option added in liferay

Now all we need is an endpoint that uses our template and luckily for us, it exists:

headless-delivery/v1.0/structured-contents/{structuredContentId}/rendered-content/{templateId}

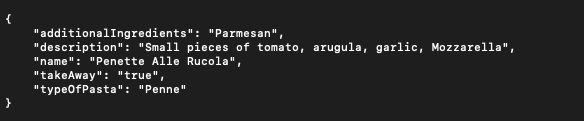

That results in the following response…

pizzashop app endpoint template code

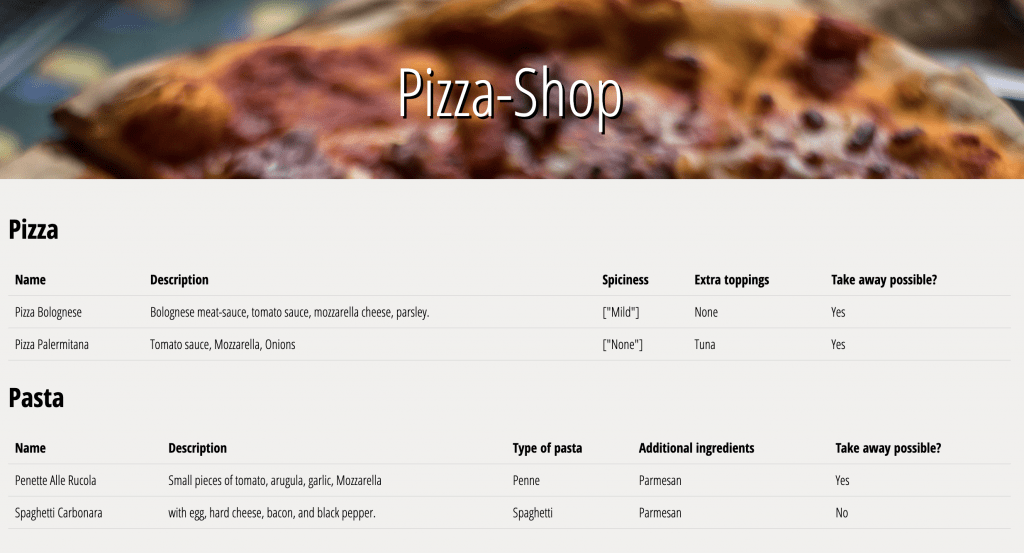

… which can be used to fill in the menu in the Angular Application:

pizzashop app angular application with endpoint template

Filter, sort and search

Another great built-in feature is the ability to add a filter, sort or search to request. Meaning Liferay’s headless API will take care of this for you. Here are some examples:

Sorting by title

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?sort=title:desc

Searching for articles with ‘Bolognese’

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?search='Bolognese'

Filtering by title

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?filter=title eq 'Pizza Palermitana'

Leaving the fields empty will only return the pagination information, including the total count of objects found by the request.

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?fields=

You can find more information about filter, sort and search here. Disclaimer: Filter, sort and search can not be used when you’re using your own custom template. However there is a workaround for this as well, albeit with the drawback of having to do 1 + n requests: You can sort/filter/search your items using the default response of Liferay, which includes an URL that will lead you to your custom response:

/o/headless-delivery/v1.0/content-structures/{contentStructureId}/structured-contents?fields=renderedContents.renderedContentURL'

What about the contentstructureId and the templateId?

It’s true that when you create a new structure or template, its Id is generated on the fly. However for every little problem there is a solution. For this problem in particular, there are 2 possible approaches:

  • creating your structure and template programmatically, meaning you can define the ID of your structure and template;
  • or using content sets, which is a new built-in feature of Liferay 7.2.

Seeing as we want to do as little effort as possible, we’ll go for option number 2: content sets.

Without going too much into detail, content sets are basically what they sound like: a collection of content which can be defined by an administrator. Luckily for us we can make a collection, for example, out of all web content articles based on one or more structures. This means we can make a content set out of all our pizzas and pastas, which also lets you add filtering and ordering through the control panel.

pizzashop app built-in feature liferay 7.2.

You might already feel where I’m going with this. Yes, there’s also an endpoint that allows us to get the web content articles via the content set:

o/headless-delivery/v1.0/sites/{siteId}/content-sets/by-key/{key}/content-set-elements

The key is generated based on the name of the content set, where the spaces are replaced by a hyphen. Sorted Pizzas and Pastas would generate the key ‘sorted-pizzas-and-pastas’. More information and how to create a content set can be found here.

Liferay 7.2 headless APIs: conclusion

Without a doubt Liferay 7.2 headless APIs have the potential to enrich custom solutions with the Liferay features we’ve come to know and love. However, with the introduction of these headless APIs I had hoped we would have a built-in feature to easily create our own custom objects and the ability to expose them through dedicated APIs. That being said, being able to somewhat reproduce this feature through web content articles and their headless APIs speaks to the flexibility and extensibility of Liferay itself.

I for one look forward to what they have in store for us next!
